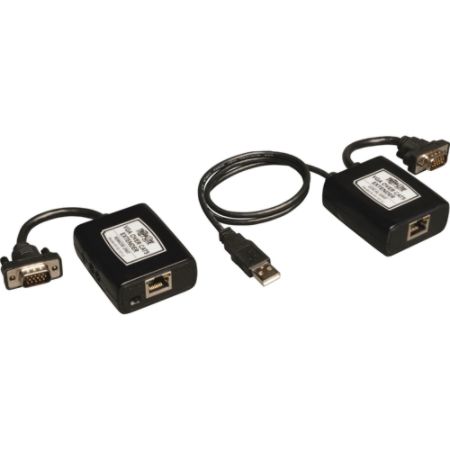

Tripp Lite B130-101-U VGA over Cat5 USB powered Extender Kit Item # 581569
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
581569
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Tripp Lite's USB-powered VGA over Cat5 Extender Kit allows you to extend a 1920 x 1440 (60Hz) signal up to 350 ft., or a 1024 x 768 (60Hz) signal up to 500 ft., using readily available Cat5e/6 cabling. Ideal for digital signage applications, classroom or auditrium projectors, and more. Extender draws needed power from a USB connection at the computer...no external AC adapters required. Receiver unit includes Gain adjustment for brightness/darkness control, and Equalization adjustment for sharp, clear images. VGA "dongles" allow for direct attachment to video equipment...no additional VGA cables required. Kit includes a Transmitter with VGA and USB (power) pigtails, and a Receiver with VGA pigtail. Also included is a small adjustment screwdriver for the EQ and GAIN controls. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Product Details
| Item # | 581569 |
| OfficeMax # | 23365877 |
| Manufacturer # | LD8250 |
| Number of Network (RJ-45) Ports | 2 |
| Certifications & Standards | TAA; GSA |
| Connectivity Technology | Wired |
| package contents | VGA Over Cat5 Transmitter; VGA Over Cat5 Receiver; EQ And GAIN Adjustment Screwdriver |
| Product Name | B130-101-U TAA / GSA Video Extender/Console |
| Twisted Pair Cable Standard | Category 6 |
| Number of VGA Inputs | 1 |
| manufacturer | Tripp Lite |
| VGA Out | Yes |
| Maximum Operating Distance | 500 ft |
| brand name | Tripp Lite |
| USB | Yes |
| Number of USB Ports | 1 |
| Maximum Video Resolution | 1920 x 1440 |
| Network (RJ-45) | Yes |
| VGA In | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Number of VGA Outputs | 1 |
| color | black |
| warranty length | 1-year limited |
| model name | B130-101-U |
| Show More ▾ |
Customer Reviews
Rated 3.5 out of 5�by 2
reviewers.
Rated 3 out of 5�by Rick Spotty perfromance
We have several of these deployed using a high end video splitter. Remote units often fail to work after a time and they get hot. Unplug to cool and they work again. Image quality is poor even after adjusting the screws on the remote unit. Between poor image quality and unreliable performance, we are going to look at another option. Clearly, you get what you pay for.
October 12, 2015
Rated 4 out of 5�by Smitty Great product - but one caution.
Our testing indicated it works well. As you approach the distance limitation, we saw some slight waviness to the image - mostly noticable when looking close at smaller fonts. One caution: The local unit sends power to the remote unit at 15 volts over what would be data lines for Ethernet. If you plug the local unit into a LAN connection instead of a video connection, you're likely going to blow the network device that is plugged into the far end of that cable. You might consider the B130-101 if this is of concern to you. Ideally, Tripp-Lite will fix this in the next model by moving the power to what would otherwise be PoE lines and building in detection for a non-PoE Gigabit Ethernet device being connected so no damage could occur.
November 14, 2012
